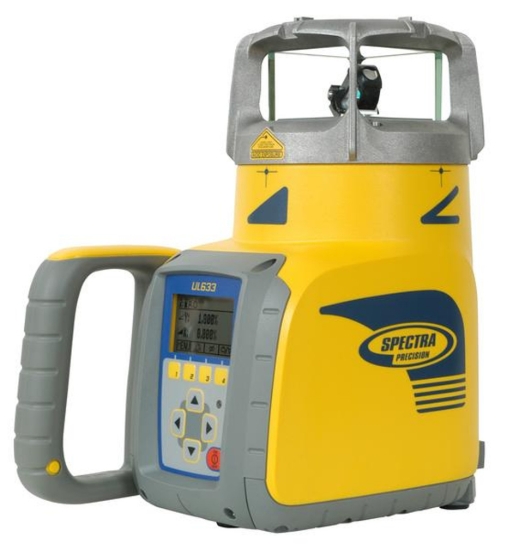

UL633N
Leveling accuracy1,3: ± 0.5 mm/10 m, 1/16“ @ 100 ft, 10 arc seconds
Grade accuracy1,3: ± 1.0 mm/10 m, 1/8“ @ 100 ft, 20 arc seconds
Grade temperature drift sensitivity: ± 0,3 mm / 10 m / 1°C; 1/16” @ 310 ft. @ 1°F
Rotation: 0 - 750 rpm
Scan mode: 5 preset sizes + variable adjustment
Operational area1,2: appr. 400 m (1300 feet) radius with detector
Laser type: 650 nm
Laser class: Class3
Self-leveling range: appr. ± 14°
Grade range (Y;X): ± 25% both axes (not simultaneously)
Grade range (Z): ± 25%
Leveling indicators: LCD indications and LED flashes
Radio range (HL760)1,2,4: up to 150 m (490 ft)
Power source: 4 x 1,5 V D alkaline batteries or NiMH battery pack
Battery life1
: 35 hours NiMH; 40 hours alkaline
Operating temp.: -20°C to 50°C (-4°F to 122°F)
Storage temp.: -20°C to 70°C (-4°F to 158°F)
Tripod attachments: 5/8 x 11 horizontally and vertically
Dust and Water proof: IP67
Weight: 3.1 kg (6.8 lbs)
Low voltage indication: LCD battery indicator
Low voltage disconnection: unit shuts off
16.2 Remote Control RC603N
Radio Operating range1,2,4: up to 150 m (490 ft)
IR Operating range1
: up to 80 m (260 ft)
Power source: 2 x 1.5V AA alkaline batteries
Battery life1
: 130 hours
Dust and Water proof: IP66
Weight: 0.26 kg (0.4 lbs)
16.3 Spot Finder SF601
Operating range1,2,4: up to 80 m (260 ft)
Power source: 4 x 1.5V AA alkaline batteries
Battery life1 : 30 hours
Dust and Water proof : IP67
Weight: 0.43 kg (0.4 lbs)
